    GPS + 4G Combine 2 In 1 Antenna Fakra Connector RG174 2M Length In Black

    Ask Lasest Price
    Brand Name : BOGES
    Model Number : BGS-GPS+4G-FAKRA-2M
    Certification : ISO9001,RoHs
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 20K per day
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    GPS + 4G Combine 2 In 1 Antenna Fakra Connector RG174 2M Length In Black

    GPS + 4G Combine 2 in 1 Antenna With Fakra connector RG174 2M Length


    Application


    ▪ Global Positioning System

    ▪ GARMIN / Marine Positioning System

    ▪ GPS / GSM Car Tracking System


    Feature


    ▪ RoHS Compliant

    ▪ Low V.S.W.R. / Low Loss Design / High Gain

    ▪ High Efficiency and Sensitivity

    ▪ Low Loss RF Coaxial Connector Cable Feed

    ▪ Water Proof Design


    Specification


    GPS Electrical Specification
    Center Frequency (MHz)1575.42MHZ
    Band width (MHz)10MHZ min (return loss-10dB)
    Gain (dBi)

    5dBic @zenith

    Mounted on 70mmx70mm ground plane

    Input Impendence (Ω)50Ω
    V.S.W.R1.5 MAX
    Polarization IntensityR.H.C.P
    Axial Ratio

    3dB max

    Mounted on 70mmx70mm ground plane

    Antenna size25*25*4mm
    LNA Specification
    Frequency range1575.42Mhz±1.023Mhz
    Gain28±2dB(+25℃±10℃)
    Output VSWR1.5 MAX
    Noise Figure1.5dB Max(+25℃±10℃)@DC3.3V
    DC currentTYP 8mA, MAX 12mA@DC3.3V
    Main technical specifications
    Amplifiers gain28 dBi
    VSWR1.5 MAX
    Working Temp-40~+85℃
    Vibration

    Sine sweep

    Lg(0~p)10~50~10HZ each Axis

    Humidity95%~100%RH
    Noise figure (dB)1.5 max
    cable length (mm)2000±30
    connectorFakra

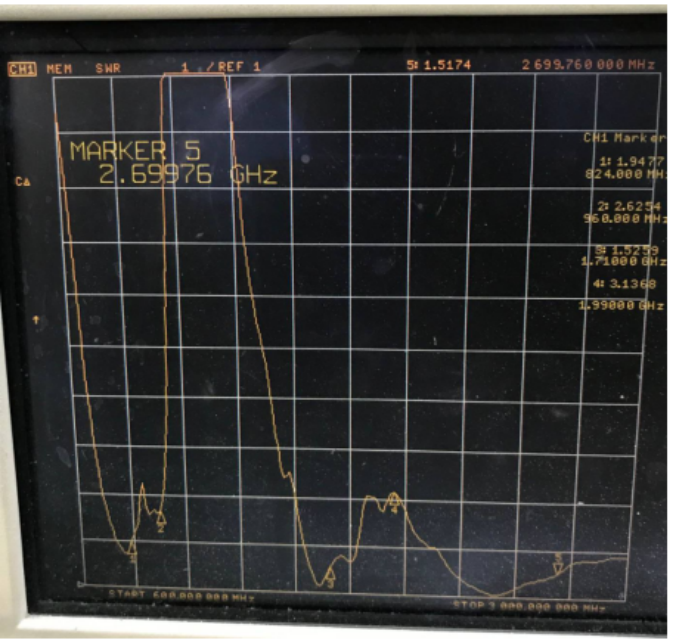

    S.W.R



    Radiation Pattern

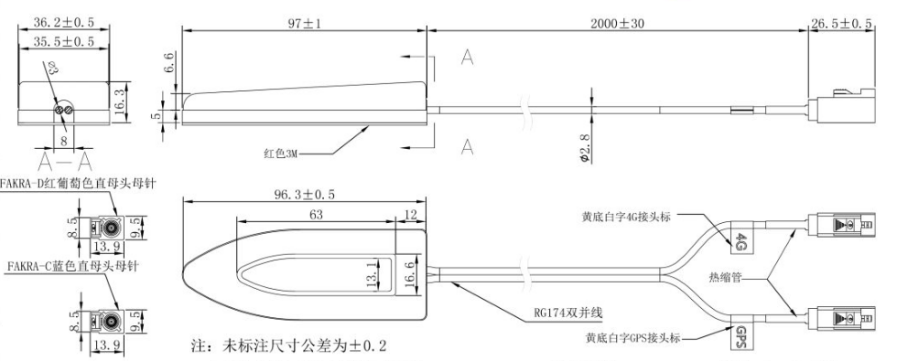

    Drawing
