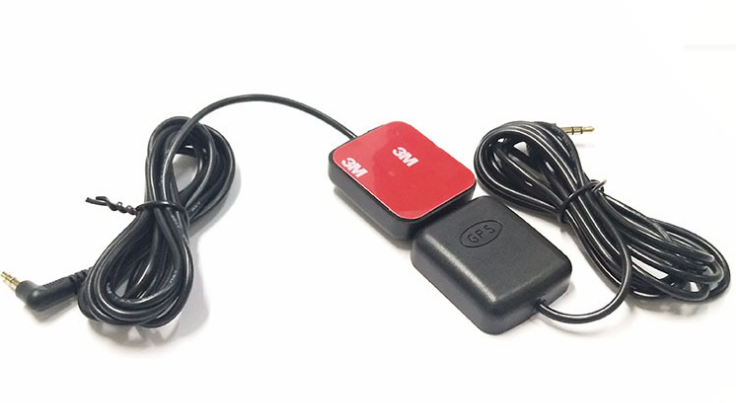

GPS Module with Antenna G-MOUSE Series 3v-5v NMEA protocol,UART 9600 Baud Rate

Introduction:

It is a complete GPS engine module that features super sensitivity, ultra low power and small form factor.
The GPS signal is applied to the antenna input of module, and a complete serial data message with position,velocity and time information is presented at the serial interface with NMEA protocol or custom protocol.

Its –165dBm tracking sensitivity exten dspositioning coverage into place like urban canyons and dense foliage environment where the GPS was not possible before.

The small form factor and low power consumption make the module easy to integrate into portable device like PNDs,mobile phones, cameras and vehicle navigation systems.

Features:

1.Build on high performance, low-power MT3337chipset
2.Receiver Type:L1 frequency band, 22tracking/66acquisition-channel
3.Ultra high sensitivity: -165dBm
4.Accuracy:5m CEP without SA

5.OD3.5 DC Connrctor:UART Output 9600 Baud Rate(3.0COMS)

Parameter:

Operating voltage: 3.0—5V(Max @20mA)
Operating temperature range:-40 to 85℃
Small form factor:45x38x12mm

Application:

1. Car navigation system
2. A.V.L tracking system

Specification
