Vertical Magnetic Omni Directional 4g Lte Antenna SMA Male
Connector With RG 174 1.5M Cable
Detail Product Description
Frequency: 700~ 2700 MHz
S.W.R: 2.5 MAX
Impedance: 50 ohm
Peak Gain: 5 dB
Connector: SMA Connector.
Application:
1.Wi-Fi /WLAN /MEMO /Bluetooth System
2. Router
3. IEEE802.11 WLAN System
4. Wireless Communication System
Specification
A. Electrical Characteristics |
Frequency | 700 ~ 2700 MHz |
Impedance | 50 ohm |
S.W.R | 2.5 Max. |
Peak Gain | 5 dB |
Return Loss | >= 10 dB |
B. Material & Mechanical Characteristics |
Cable Type | RG 174 Cable |
Connector Type | SMA Connector |
Body | ABS, Black |
C. Environmental | |
Operation Temperature | - 40 ˚C ~ + 65 ˚C |
Storage Temperature | - 40 ˚C ~ +80˚C |
| | |
Measuring Method
A 50Ω coaxial cable is connected(soldered) to the 50Ω point, at the
duplex-
filter on the main PCB. The connection of the coaxial cable shall
be done to
introduce a minimum of mismatch. As much as possible the coaxial
cable
arrangement shall prevent influences from induced currents on the
cable.
In the other end, the coaxial cable is connected to a network
analyzer.
The measurement is performed at room temperature. The handset,
including the PCB, must not in any significant way differ from the
mass
production, i.e. the antenna feeding network has to be equivalent
to the
feeding network in mass production. The specification shall be met
in the
entire frequency band.
Drop
Drop in retracted mode(3cycles)
Drop Height: 1.5m
Drop Angle : 180°
Actual handset applied
Demands
The original shape shall be possible to restore. The antenna shall
satisfy
Measuring Method
The antenna is placed in the handset or an equivalent test fixture.
The handset is dropped with the antenna downwards onto a metal
plate.

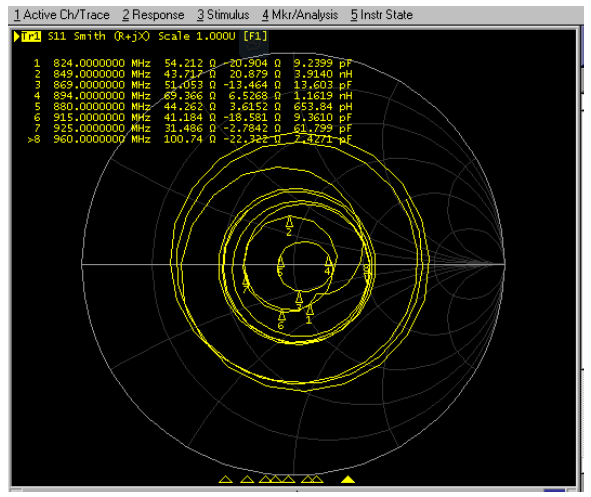

Characteristics and Reliability Test:
VSWR
