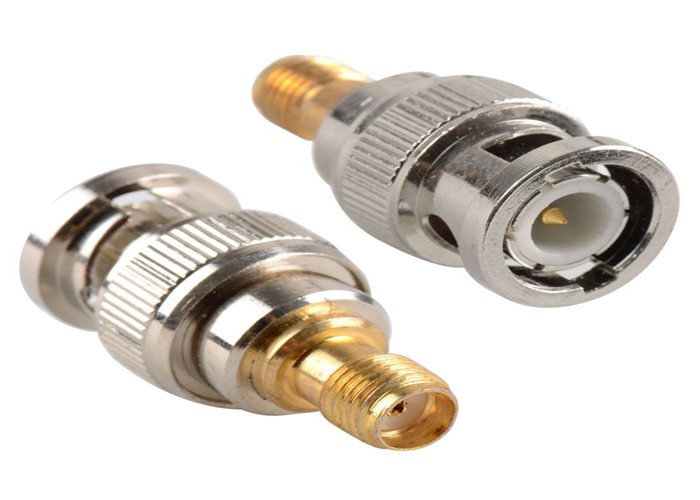

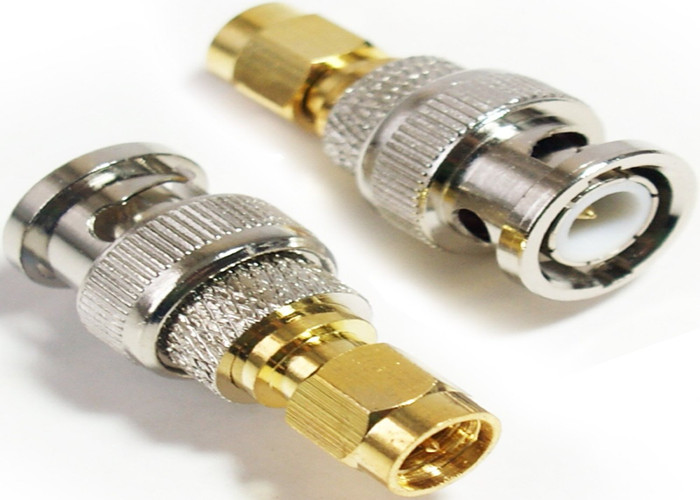

Coaxial RF Aerial Connector SMA Male To BNC Male Adapter With
Nickel Plating
Product Description :
RF coaxial BNC connectors which is designed to provide low reflection from DC to 11 GHz under
extreme environmental conditions, especially shock and vibration.
Cable terminations are available in crimp, clamp, twist-on and
solder configurations. The 7/16"-28 thread coupling provides
positive mating.
Although their rugged design was initially developed for high
vibration environments, TNC connectors are widely accepted and used
for data transmission, medical equipment, cellular mobile
telephones, test equipment, microwave components and aerospace
applications.
Features :
1. ROHS Reach , 100% new , Top quality
2. Material : steel / aluminum / brass / iron / zinc / alloy
Any other material and dimension depends on customers'demand.
3. Prompt delivery , competitive price , small order acceptable ,
ODM , OEM
Product Specification :
| Electric Data |
| Characteristic Impedance | 50 ohm |
| Frequency Range | DC -11GHz |
| Working Voltage | 335 VRMS(max at sea level) |
| Dielectric Withstanding Voltage | 1500 VRMS(min at sea level) |
| Contact Resistance | Inner : 1.5 milliohms(max) |
| Outer: 2 milliohms(max) |
| Insulation Resistance | 5000 me ohms(min) |
| Mechanical Data |
| Durability Mating | 500 Cycles min. |
| Material Data |
| Connector Parts | Materials | Plating Finish |
| Body | Brass | gold or nickel |
| Female Pin | Brass | gold |
| Insulators | PTFE | N/A |
| Environmental Data |
| Temperature Range | -65 ℃~+165 ℃ |
